Panasonic TOUGHBOOK® 55 TrimLine™ Laptop Docking Station DUAL RF with LIND Auto Power Adapter

$1,991.00

Item Number: 7300-0373-06

Description

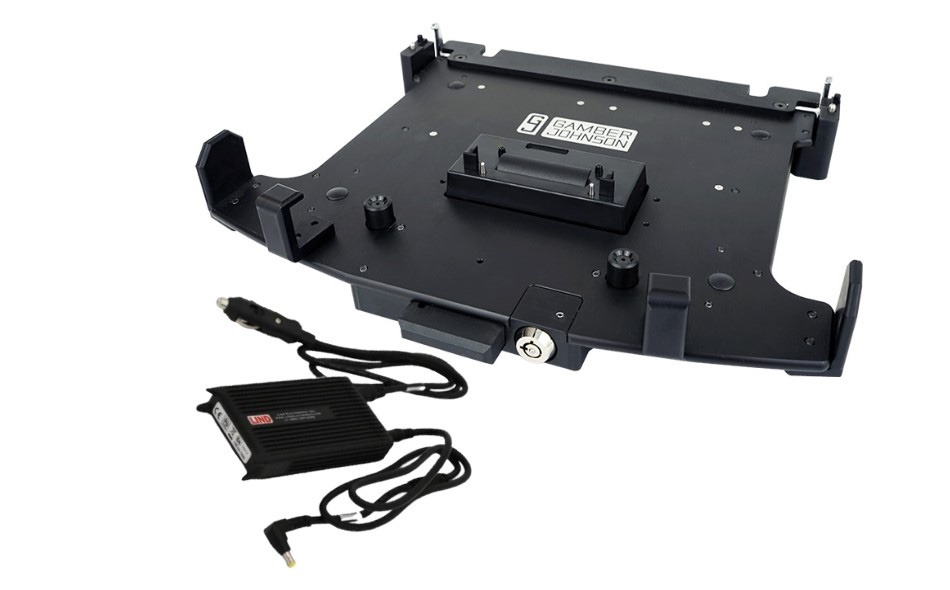

The TrimLine™ vehicle docking station for the Panasonic Toughbook 54/55 laptop provides full port replication, dual RF antenna pass-through, and an ergonomic design built with user safety in mind. This docking station kit includes a LIND auto power adapter.

Ships from Canada

Add to Quote
Shipping — Call for Lead Time
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide
View Full Line Catalog

  • Weight

    8.4 lbs / 3.81 kg

  • Height

    3.04 in / 7.72 cm

  • Width

    10.07 in / 25.58 cm

  • Depth

    12.45 in / 31.62 cm

Features:

  • Compatible with Panasonic Toughbook 54 and 55 computers
  • Integrated genuine Panasonic PCB and connector for trouble free service
  • Aluminum construction for strength and durability
  • Auto-retracting docking connector cover reduces potential damage to critical components
  • Floating connector for reliable docking connection
  • Rear-facing I/O ports with Integrated cables restraint/cable management system
  • Captured key lock with auto-latching mechanism ensures user safety, protection and device security
  • Universal mounting interface including VESA 75 for optimum compatibility with new and existing infrastructure
  • Ergonomic design for safety and single hand operation
  • Minimal footprint for increased usable cabin space
  • Dual RF TNC

Kit Includes:

  • Panasonic TOUGHBOOK 54/55 Laptop Docking Station
  • LIND Power Adapter
  • Installation Guide
  • Mounting Hardware

Purchase this product through a Reseller in your area.

  • Model:

    • TOUGHBOOK 54/55

  • Warranty:

    • 3-year Limited Lifetime Warranty
    • Do Not Use
    • Extended Warranty/Gamber Guard Options Available

  • Device OEM:

    • Panasonic

  • Power Supply:

    Yes; LIND 102W auto power adapter with LED indicator and cigarette lighter connector (Item No. 7300-0216)

  • Testing Specifications:

    • Pending Panasonic Toughbook Certified
    • MIL-STD 810G Shock/Vibration Tested
    • MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (Storage/Operational)
    • SAE RJ1455 Crash Tested
    • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
    • RoHS, FCC, CE Certified

  • Port Replicators:

    • Serial D-Sub 9 Pin
    • HDMI 19 Pin
    • VGA  D-Sub 15 Pin
    • Ethernet RJ45
    • Fully Powered USB 3.0 (2)  900mA
    • Power Input 15.6Vdc
    • External Antenna Switch

  • Antenna Pass-through:

    • Dual RF

  • Device Type:

    • Laptop

  • Industry:

    • Fire/Rescue
    • Material Handling
    • Public Safety
    • Utility

  • Port Replication:

    • Full

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Dock

  • Notes:

    Compatible with Panasonic Toughbook 54 and 55 models

    WARRANTY:

    • Limited Lifetime Warranty on structural components
    • 3-Year Limited Warranty on electronics
    • 1 Year Warranty on LIND Power Adapter
