Zebra ET4X 8” SLIM Full Port Replication Docking Station

$541.00

Item Number: 7160-1801-20

Description

Combine the Zebra ET4X enterprise tablet with Gamber-Johnson’s new vehicle docking station, with dual powered USBs, Serial, and ethernet port replication for added productivity. Each powered USB port provides 1.5A, strong enough to power a long-range scanner and a printer or other peripheral. This dock will keep the ET4X tablet charged all day long and provides the port replication to connect the right peripheral devices to get the job done.

Add to Quote
Shipping — Call for Lead Time
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide Testing Summary
View Full Line Catalog

  • Weight

    1.3 lbs / 0.59 kg

  • Height

    9 in / 22.86 cm

  • Width

    7.75 in / 19.69 cm

  • Depth

    2.8 in / 7.11 cm

Features:

  • Zebra’s rugged frame is required in order to work with docking station
  • All features on tablet are functional while the tablet is safely docked
  • 12V power input required
  • Simple, one-handed docking and release operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet in until the lock engages.
    • Push latch button up with your thumb then remove the tablet from the docking station.
  • POGO pin connector provides power to charge the Zebra tablet while docked
  • Barrel Key lock for theft deterrence
  • VESA 75mm mounting pattern; compatible with Zirkona mounting products
  • Can be mounted on a flat vertical surface
  • Composite design to reduce overall weight

Kit Includes:

  • Zebra ET4X 8” SLIM Full Port Replication Docking Station
  • Mounting Hardware

Purchase this product through a Reseller in your area.

  • Model:

    • ET40/45

  • Warranty:

    • 3-year Limited Lifetime Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Device OEM:

    • Zebra

  • Power Supply:

    None, use one of the following:

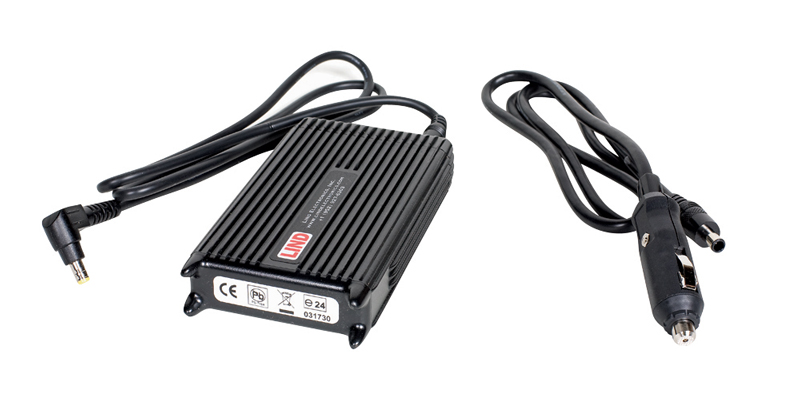

    • Lind 11-16V Automobile Power Adapter (7300-0415)
    • LIND 12-32V Isolated Power Adapter (7300-0466)
    • LIND 20-60V Isolated Power Adapter (7300-0467)
    • LIND 72-110V Isolated Power Adapter (7300-0418)

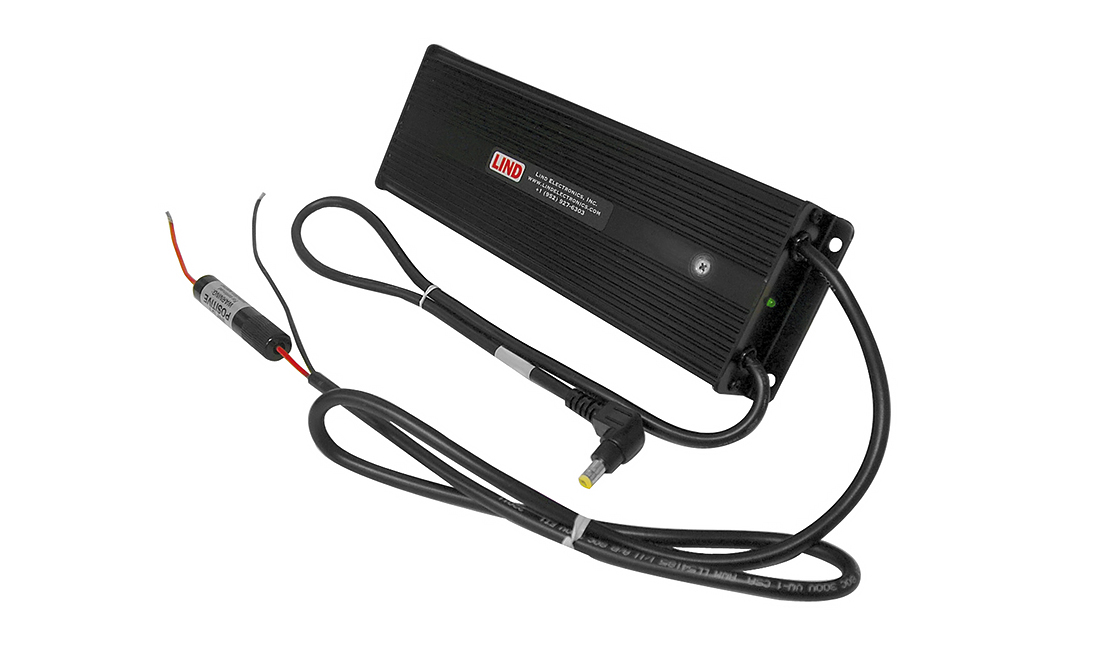

    • Lind AC-12V Material Handling Power Adapter (7300-0472)

  • Testing Specifications:

    • MIL-STD 810G Shock/Vibration Tested
    • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
    • SAE J1455 Crash Tested
    • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
    • RoHS, FCC, CE Certifications
    • RCM
    • Safety

  • Port Replicators:

    • (2) USB 2.0
    • (1) Serial Port
    • (1) Ethernet Port

  • Antenna Pass-through:

    • No RF

  • Device Type:

    • Tablet

  • Industry:

    • Intermodal
    • Logistics
    • Material Handling

  • Port Replication:

    • Full

  • Sub Type 1:

    • Dock

  • Notes:

    Compatibility:

    Zebra ET4X 8" Rugged Tablet (Zebra's rugged frame is required in order to work with docking station)
