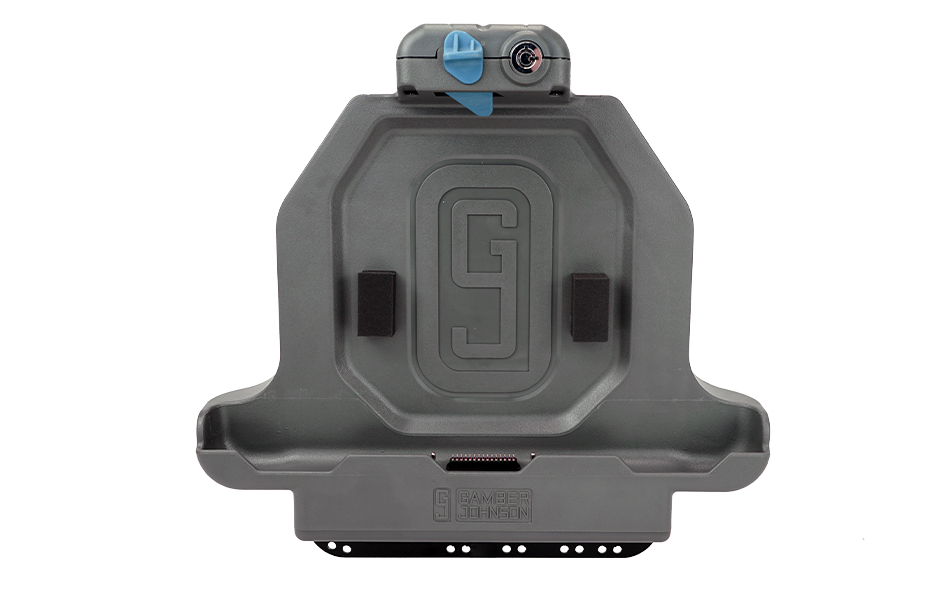

Zebra ET51/56 10″ SLIM Dual USB Docking Station

$680.00

Item Number: 7160-1576-00

Description

Gamber-Johnson’s Zebra ET51/56 10″ SLIM Dual USB docking station provides dual powered (1.5A each) USB ports; strong enough to connect a long-range scanner and other peripherals. The front-facing release latch button makes one-handed docking/release very easy and the 75mm VESA mounting pattern will attach to most Gamber-Johnson motion attachments. Now shipping.

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide
View Full Line Catalog

  • Weight

    1.9 lbs / 0.86 kg

  • Height

    11.37 in / 28.88 cm

  • Width

    11.72 in / 29.77 cm

  • Depth

    3.05 in / 7.75 cm

Features:

  • Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
  • This docking station does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
    POGO pin connector and internal powered PCB provides power to charge the Zebra tablet while docked
  • 8-40V power input range with power filtering PCB
  • Dual powered USB ports; 1.5A for each port to connect peripheral devices
  • Access to all control buttons and ports while the tablet is safely docked
  • Bottom-facing I/O ports; integrated cable restraint/cable management system
  • Approximately 60” (152.4 cm) power cable with bare wire end to attach to power source
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of docking station
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56 10" SLIM Dual USB Docking Station
  • Mounting hardware
  • Installation guide

Purchase this product through a Reseller in your area.

  • Warranty:

    • 3-year Limited Lifetime Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Device OEM:

    • Zebra

  • Power Supply:

    • Internal powered PCB with 8-40V power input range provides power to charge the Zebra tablet while docked.

  • Testing Specifications:

    • MIL-STD 810G Shock/Vibration Tested
    • MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
    • SAE J1455 Crash Tested
    • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
    • RoHS, FCC, CE Certifications

  • Port Replicators:

    • (2) Powered USB 2.0 (1.5A each)

  • Antenna Pass-through:

    • No RF

  • Device Type:

    • Tablet

  • Industry:

    • Material Handling
    • Public Safety
    • Utility

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Dock

  • Notes:

    Compatibility:

    • Compatible with Zebra ET51/56 rugged tablet computer with rugged frame
