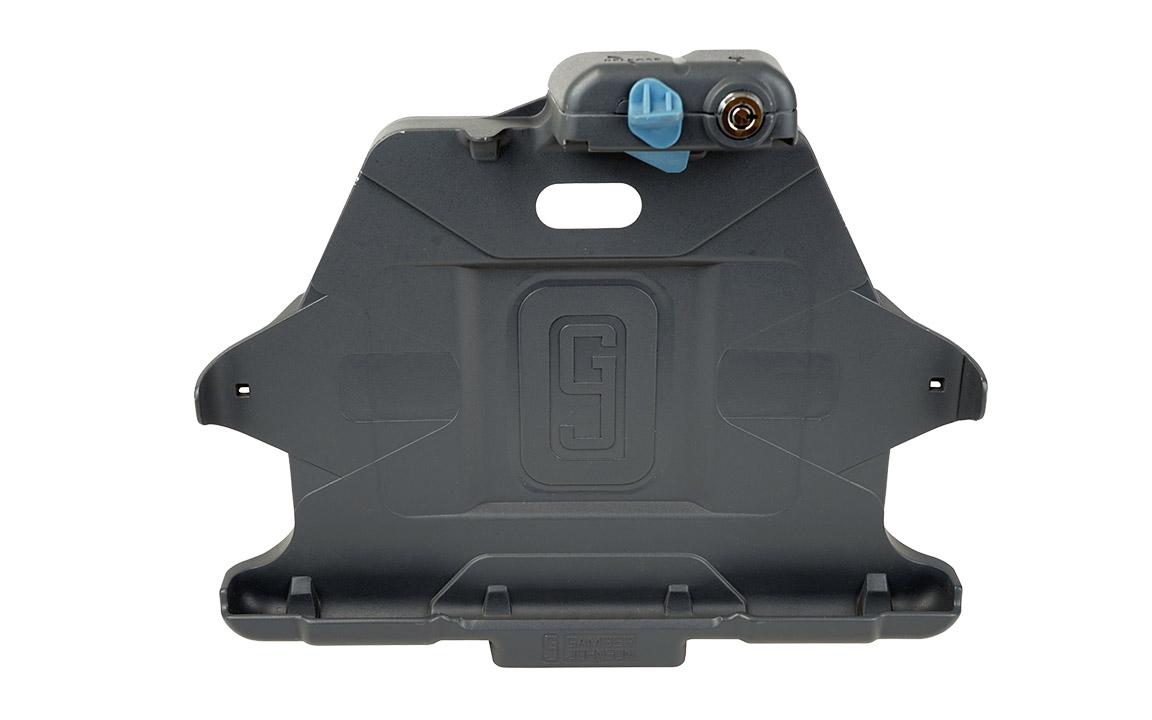

Samsung Galaxy Tab Active Pro/Active4 Pro Docking Station with MP205 Connector

$369.00

Item Number: 7160-1418-30

Description

The Samsung Galaxy Tab Active Pro/Active4 Pro docking station features dual-powered USBs. Each USB port will deliver 1.5A of power with an integrated cable restraint system. The docking station is compact; has a keyed lock; and docking/release is a simple; one-handed operation.

Add to Quote
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide Testing Summary Console Depth Drawing
View Full Line Catalog

  • Weight

    1.3 lbs / .58 kg

  • Height

    8.5 in / 21.5 cm

  • Width

    10.5 in / 26.6 cm

  • Depth

    2.5 in / 6.35 cm

Features:

  • Designed for the Samsung Galaxy Tab Active Pro/ Active4 Pro 10-Inch rugged tablet with rugged case
  • Dual powered USB ports; 1.5A for each port for connecting peripheral devices
  • 10-40V power input range to support a wide range of mobile applications
  • Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
  • Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
  • Simple, one-handed docking and release operation:
    • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages.
    • Push latch button up with your thumb then remove the tablet from the docking station.
  • POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked.
  • Barrel Key lock for theft deterrence
  • VESA 75mm mounting pattern; compatible with Zirkona mounting products.
  • 40" power cable with MP205 in-line jack to quickly connect to a compatible Power supply
  • Can be mounted on a flat vertical surface.
  • Composite design for reduced overall weight.

Kit Includes:

  • MP205 Connector

Purchase this product through a Reseller in your area.

  • Model:

    • Tab Active Pro

  • Warranty:

    • 3-year Limited Lifetime Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Device OEM:

    • Samsung

  • Port Replicators:

    • (2) USB 2.0 - each with 1.5A power

  • Antenna Pass-through:

    • No RF

  • Device Type:

    • Tablet

  • Industry:

    • Logistics
    • Material Handling
    • Public Safety
    • Utility

  • Port Replication:

    • Full

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Dock
