6″ Locking Slide Arm with 3/8″ Stud

$315.00

Item Number: 7160-0514

Description

The 6″ Locking Slide Arm with 3/8″ Stud is designed to work with a standard motion attachment with a 3/8″ hole (sold separately). It can slide up to 5.5″ (14 cm) from the center of the pole, and can be easily rotated to your desired position.

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
Installation Guide
View Full Line Catalog
Featured Image

  • Weight

    3.63 lbs. / 1.6 kg

  • Height

    2.43 in / 6.2 cm

  • Width

    3.66 in / 9.3 cm

  • Depth

    8.74 in / 22.2 cm

Features:

  • The entire arm can rotate around 360° with locking points at every 15°.
  • To rotate the arm simply pull the front lever out, rotate to desired position and then release the lever.
  • Locking slide arm can slide up to 5.5" (14 cm) from the center of the pole.

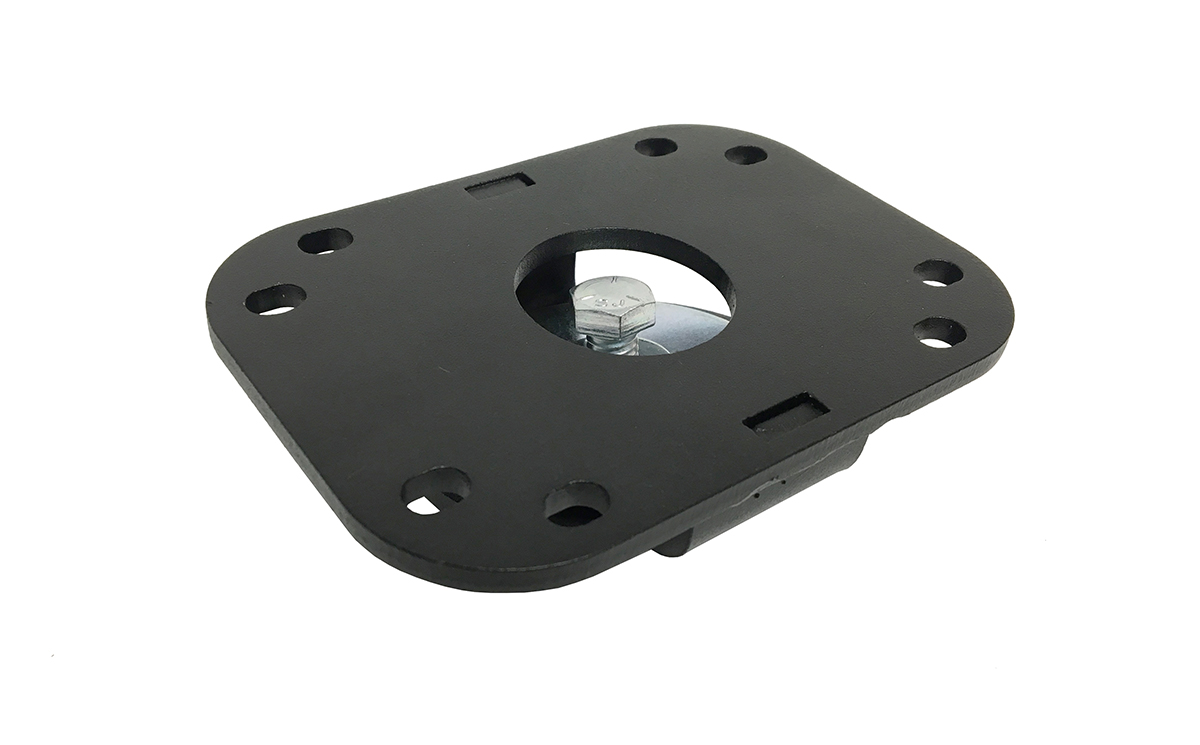

  • Designed for use with the Gamber-Johnson Standard Motion Attachments with a 3/8" hole (item no. 7110-1200 or 7160-0436 - sold separately).
  • Can be mounted directly to a flat surface or on any Upper Pole, Complete Pole, Center Pole, Low Profile Bracket or Smiley Face Pattern.
  • Heavy gauge steel construction for long-term durability.
  • Black powder coat finish for maximum corrosion resistance.

Purchase this product through a Reseller in your area.

  • Warranty:

    • Limited Lifetime Warranty

  • Sub Type 1:

    • Motion Attachment

  • Sub Type 2:

    • Locking Slide Arm

  • Sub Type 3:

    • Without Clevis

  • Industry:

    • Fire/Rescue
    • Public Safety
    • Utility

  • Placement:

    • Any Upper Pole
    • Center Pole or directly to any flat surface
    • Complete Pole
    • Low Profile Brackets

  • Brand:

    • Gamber-Johnson

  • Notes:

    Tilt:

    • No

    Rotates:

    • Entire arm - 360° can lock at every 15°.

    Slide:

    • Yes - up to 5.5" (14 cm) fore/aft

    Motion Attachment Included:

    • No - must order motion attachment (7110-1200 or 7160-0436) separately
